PRODUCT DESCRIPTION

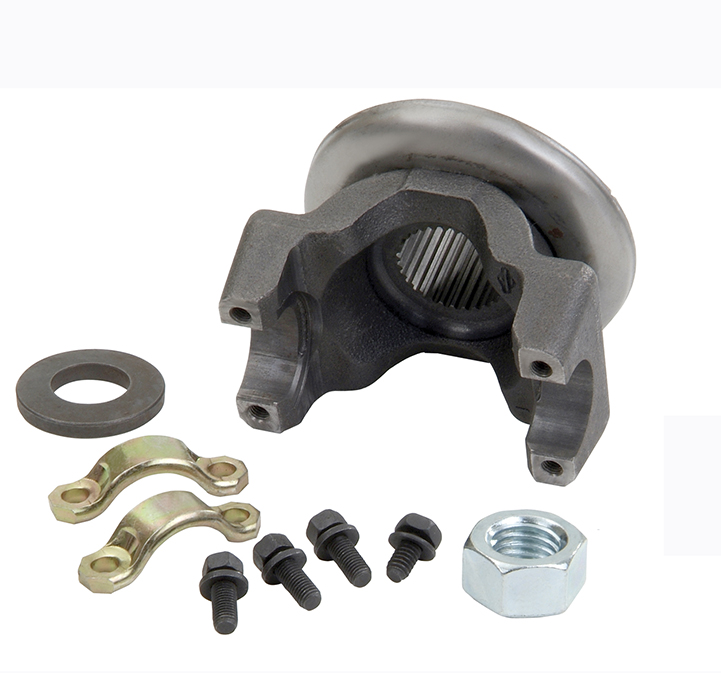

Fits: 29 Spline, 1350, Cast
U-Joint Series: 1350
Spline Major Diameter: 1.276
Spline Count: 29.000
Spline Type: Involute
Spline Pressure Angle

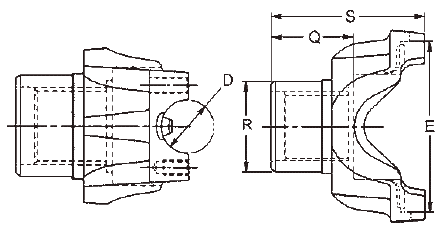

Ground Hub Diameter: (R) 0.000
Length Thru Bore: (Q) 1.500
Centerline of Joint to End of Spline: (S) 3.000
Universal Joint Retaining Width: (E) 3.625
Universal Joint Bearing Diameter: (D) 1.188
Counterbore Depth: 0.000
Joint Angle: 0.000
Style: U Bolt
Cast/Forged: Cast
