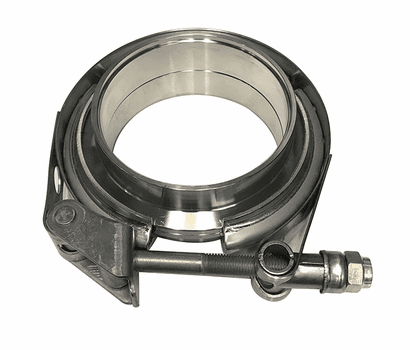

2.500" V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp

Item #: ASS22106

Price: $44.99

Quantity:

PRODUCT DESCRIPTION

Fits: 2.500” Tubing

Our Quick-Release V-Band Assemblies utilize a 304 stainless clamp and flanges. Our "Male/Female" flanges have an interlocking seating surface to ensure proper alignment during installation. The butt-weld side of the flanges offer a small groove that allows the flange and tube to be aligned better prior to welding. Each assembly includes one (1) t-bolt style clamp and two (2) interlocking flanges.

Please note: Our V-Band clamps are supplied with a metal lock nut and a non-locking hex nut. The metal lock nut is a locking-style nut and is not intended to be used during mock-up. Attempting to thread, remove, and re-thread the lock nut may cause damage to the "T-Bolt" section of the clamp. In some cases, excessive force can damage and/or break the "T-Bolt" section of the clamp. If you intend to use our clamps during the mock-up process please use a non-locking hex nut.

Mancini Racing is not responsible for damage caused to our clamps due to the use of the locking-style nut during mock-up or removal.

DETAILED SPECIFICATIONS:

Flange ID 2.500"

Flange OD 3.230"

Individual Flange Thickness (Single Flange) 0.845"

Clamp Bandwidth 0.750"

Clamp Type V-Band, Quick Release T-Bolt

Material Type 304 Stainless

Provided Fasteners Metal Lock Nut (QTY: 1) Non-Locking Nut (QTY: 1)

Fastener Size (Material) 6mm-1.5 (304 Stainless)
