PRODUCT DESCRIPTION
Fits: 413-440 4500 Carb
Intake Section Included:
Complete
Engine Block Deck Height:
Standard deck
Carburetor Quantity:
One
Intake Style:
Single plane
Basic Operating RPM Range:
3,500-7,500
Intake Manifold Height:
6.375 in.
Intake Color:
Natural
Intake Material:
Aluminum
EGR:
No
Quantity:
Sold individually.
Notes:
Designed to perfectly complement Trick Flow® PowerPort 270 cylinder heads and other brands of cylinder heads with 270cc or larger intake runners.

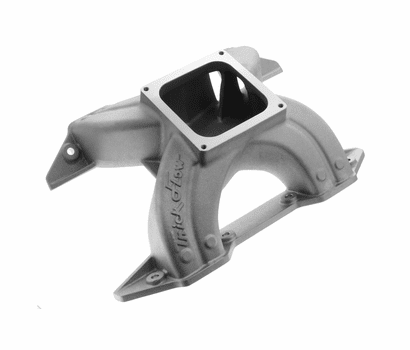

Trick Flow® R-Series Intake Manifold for Big Block Mopar
Designed from the ports up to provide Ultimate Bolt-On Performance™, Trick Flow's® R-Series intake manifolds will help your big block Mopar make loads of power. The manifolds are designed for use on large cubic inch engines making peak horsepower in the 3,500-7,500 plus RPM range.
The manifolds have CAD-optimized, large open plenums and one-piece, single plane runners. Special attention was paid to smooth airflow for equalized air and fuel distribution. Casting the manifolds in lightweight A319 aluminum delivers a substantial weight reduction. Extra material around the port openings allows for port matching and/or full porting. Integral bosses cast into each runner can be drilled and tapped to accept nozzles for nitrous applications. And if all these features don't convince you that Trick Flow® R-Series intake manifolds mean business, the Holley 4500 Dominator carburetor flanges surely will.
While designed to produce maximum power with Trick Flow's® PowerPort 270 and 295 cylinder heads, the R-Series manifolds also perform extremely well on engines equipped with other brands of cylinder heads with 270cc and larger intake ports.
