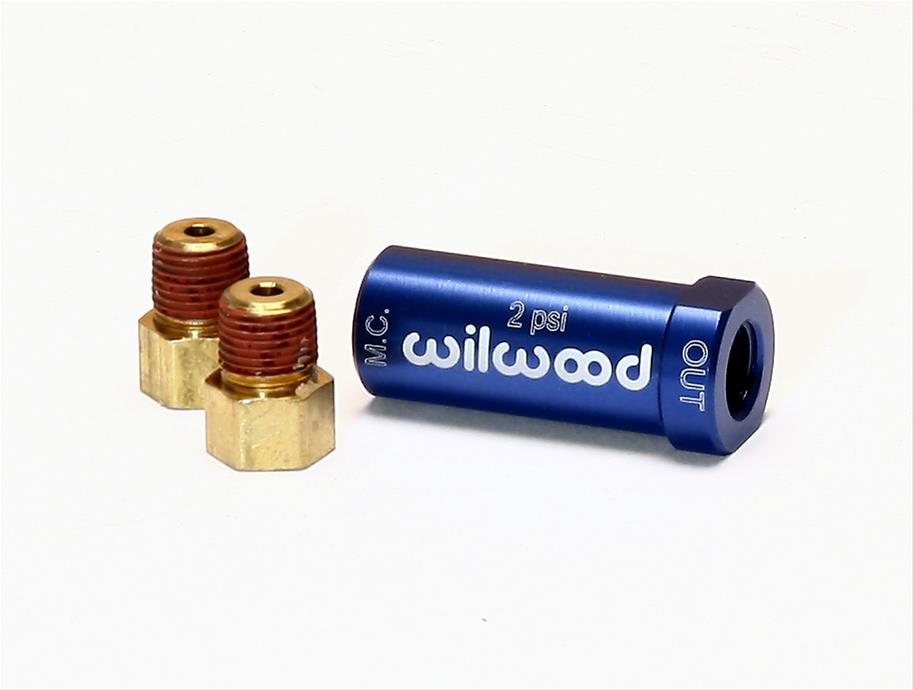

Wilwood Residual Pressure Valve

Item #: WIL260-13783

Price: $22.99



2 psi, Disc Brakes, 1/8 in. NPT Female Inlet/Outlet,

Brake Line Pressure Retained (psi): 2 psi

Residual Valve Finish: Blue anodized

Fitting Attachment 1: Female threads

Fitting Size 1: 1/8 in. NPT

Fitting Attachment 2: Female threads

Fitting Size 2: 1/8 in. NPT

Adapters Included: Yes

Quantity: Sold individually.

Notes: Supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will most domestic 3/16th hard brake lines.

Ideal for drag racing, street rods, and many off-road applications, inline residual pressure valves from Wilwood retain a minimum brake line pressure to help eliminate excessive pedal travel. These 2 lb. valves are used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers--in other words, where fluid drainback occurs, causing excessive brake drag. With drum brakes, 10 lb. valves are used to compensate for return spring tension in the drums. Wilwood residual pressure valves are made from billet aluminum and color-coded for easy identification.
