PRODUCT DESCRIPTION
Fits: Universal

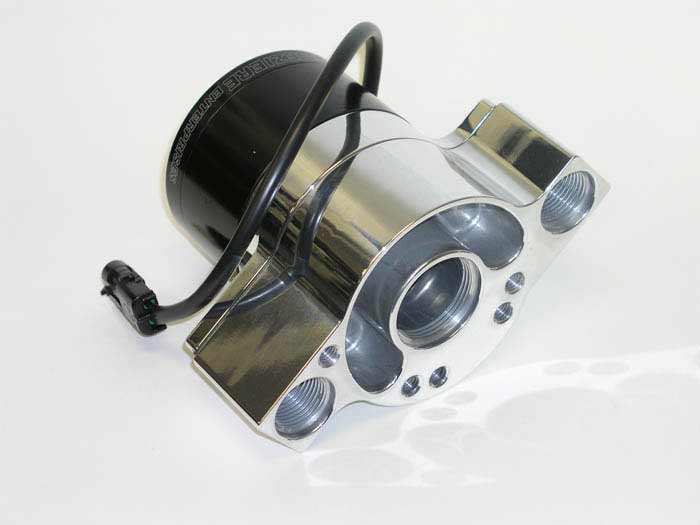

ELECTRIC PUMP REMOTE, HIGH FLOW, 55 GPM
American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. We say what we mean and mean what we say. Our 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value!
This water pump model features:
Remote / universal bulkhead mount
Suitable for street or drag strip use.
3000+ hour life expectancy.
Show quality finish.
All stainless steel hardware and 4130 mounting bracket included.
Light weight. Complete standard unit weighs only 6.3 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal.
Single inlet port threaded #20AN to accept our standard WN Style fittings.
#12AN, #16AN, #20AN, 1¼", 1½" or 1¾" slip hose inlet fittings available.
Dual exit ports threaded #12AN for a wide variety of fitting options.
Dual / tandem outlets perfect for V6, V8 or V10 applications where there are two banks to feed.
#12 outlet fittings available for #10AN, #12AN, #16AN, 5/8" hose, 3/4" hose, 1" hose or larger.
Finishing The System: This pump is supplied complete with mounting bracket hardware but
without the inlet or outlet fittings. The fittings need to be ordered according to the size of the radiator hoses.
Amperage draw: Under normal use the pump will draw 11-12 amps.
Overall Height Dimension: The standard pump is 5.5" long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 6.3 lbs.
16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, Turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard. These may be added at the factory for an additional cost. Please call for details.
