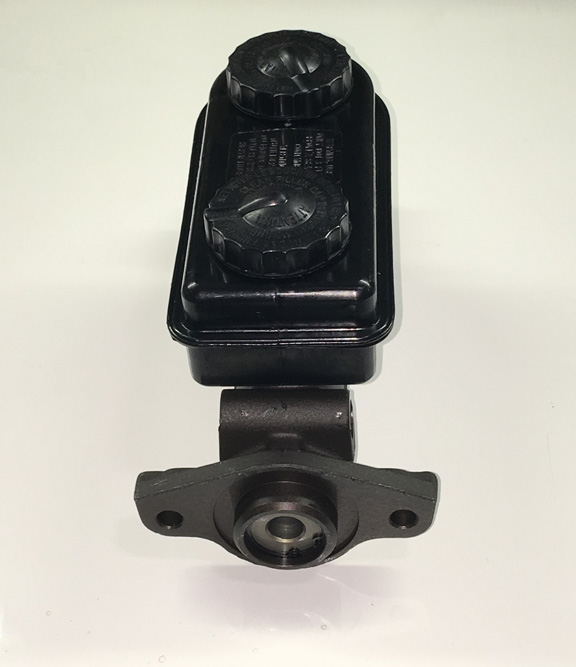

Mancini Racing Dual Inline Master Cylinder

Item #: MRE3460

Price: $110.99



1.032 in. Bore, w/o Mounting Hardware

One of the key components to any braking system is the master cylinder. Mancini Racing offers two different bore size master cylinders that can be mounted either on the firewall, like most OEM configurations, or to the frame rail via the side mounting holes that are cast into the body. The Mancini Racing dual inline master cylinder is ideal for vehicles requiring four wheel braking.

The 1.032” bore master cylinder is recommended for vehicles using OEM brakes, or, a combination of four piston rear brakes and single piston/two piston front brakes.

The 1.125” bore master cylinder will allow optimum volume and pressure for vehicles using four piston calipers on the front and rear.

Master Cylinder Material: Aluminum

Master Cylinder Finish: Natural

Master Cylinder Bore Size:1.032 in.

Brake fitting size: 1/2-20

Bowl Design: Dual

Mounting Hole Quantity: 2 holes

Remote Reservoir: No

Reservoir Included: Yes

Reservoir Material: Plastic

Brake Booster Included: No

Master Cylinder Cap Included: Yes

Pushrod Included: Yes

Mounting Brackets Included: No

Hardware Included: No

Quantity: Sold individually.

These dual inline master cylinders from Mancini Racing are ideal for sportsman classes requiring 4-wheel braking. Featuring an aluminum body, and holes for fabricating a side mount, these affordable master cylinders are available with or without mounting hardware. Hard line fittings are included.
