PRODUCT DESCRIPTION
Fits: 360 +.030 4.030 bore
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.580 in.
Engine Stroke Type: Stock
Rod Length: 6.123 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Hypereutectic aluminum
Compression Height (in.): 1.675 in.
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.984 in.
Piston Ring Thickness: 5/64 in. x 5/64 in. x 3/16 in.
File Fit: No
Gapless No
Remanufactured: No
Quantity: Sold as a set of 8.

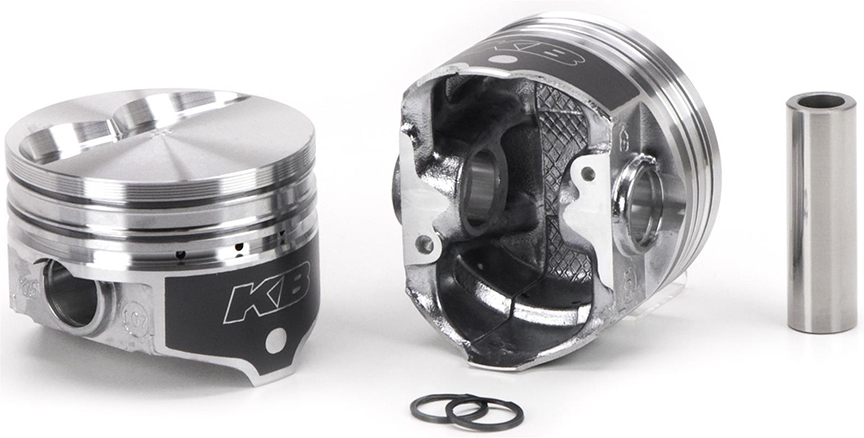

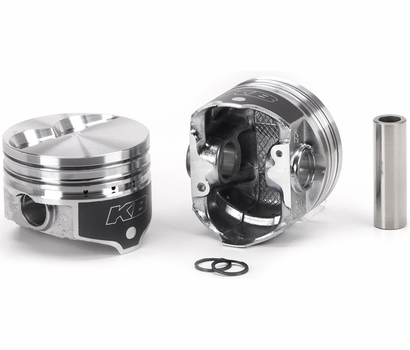

KB Performance Pistons
KB Performance hypereutectic pistons are made from 390 aluminum alloy and heat-treated to T6 standards, which makes them 30 percent stronger than ordinary untreated hypereutectics. Their 100 percent CNC-machined crowns, high upper compression-ring location, gas-accumulator groove, drilled oil returns, and spiral-lock retainer grooves make these pistons outstanding for performance applications. They have a lightweight, rigid-rib skirt design that stabilizes the piston in the bore. All of this adds up to pistons that fit tighter than forged types, provide improved oil control, reduce blow-by, increase ring life, eliminate cold start-up knocking, and won't cost you an arm and a leg! Thousands of models are available—find the set and options designed for your vehicle and engine application.
