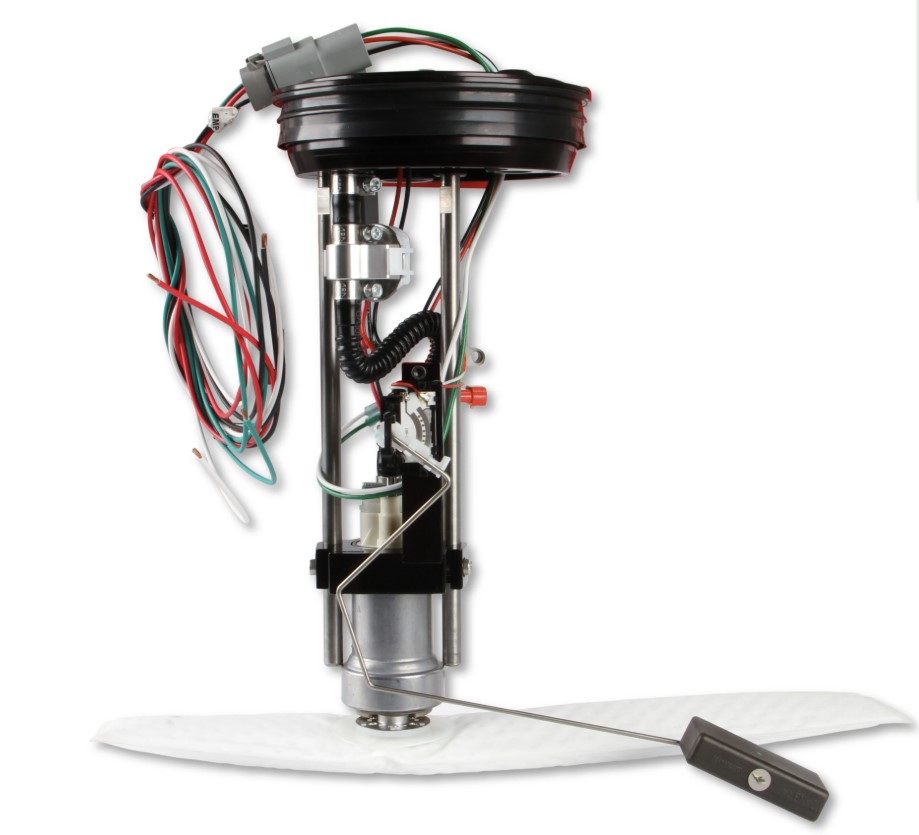

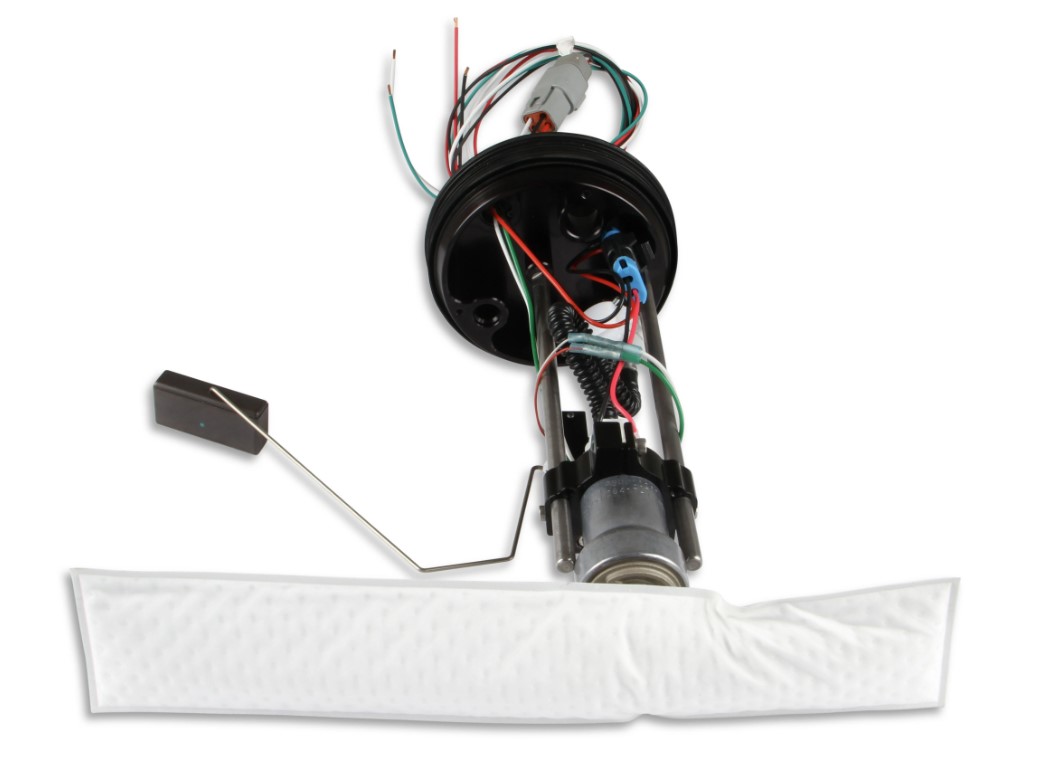

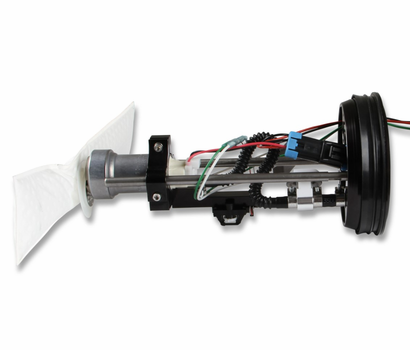

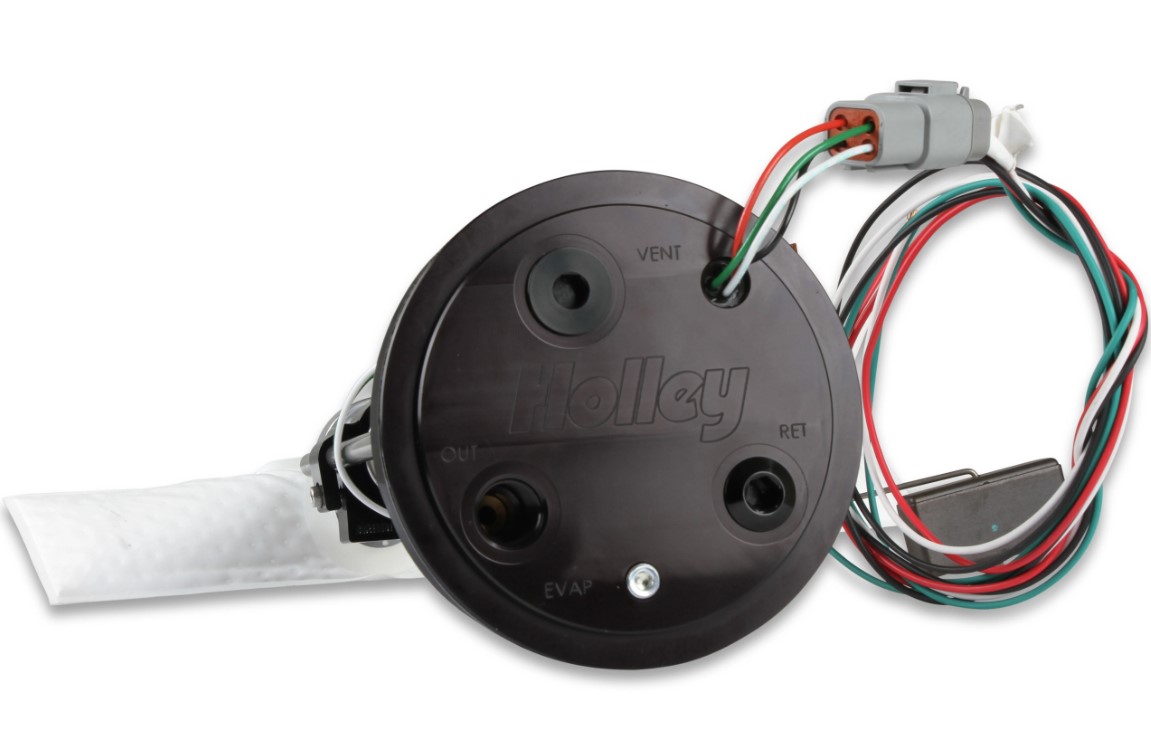

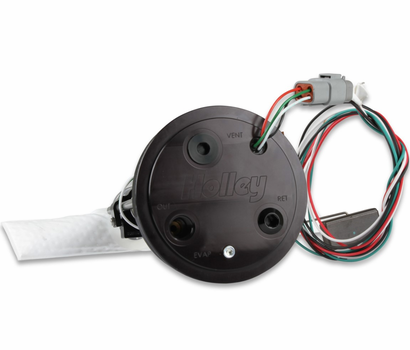

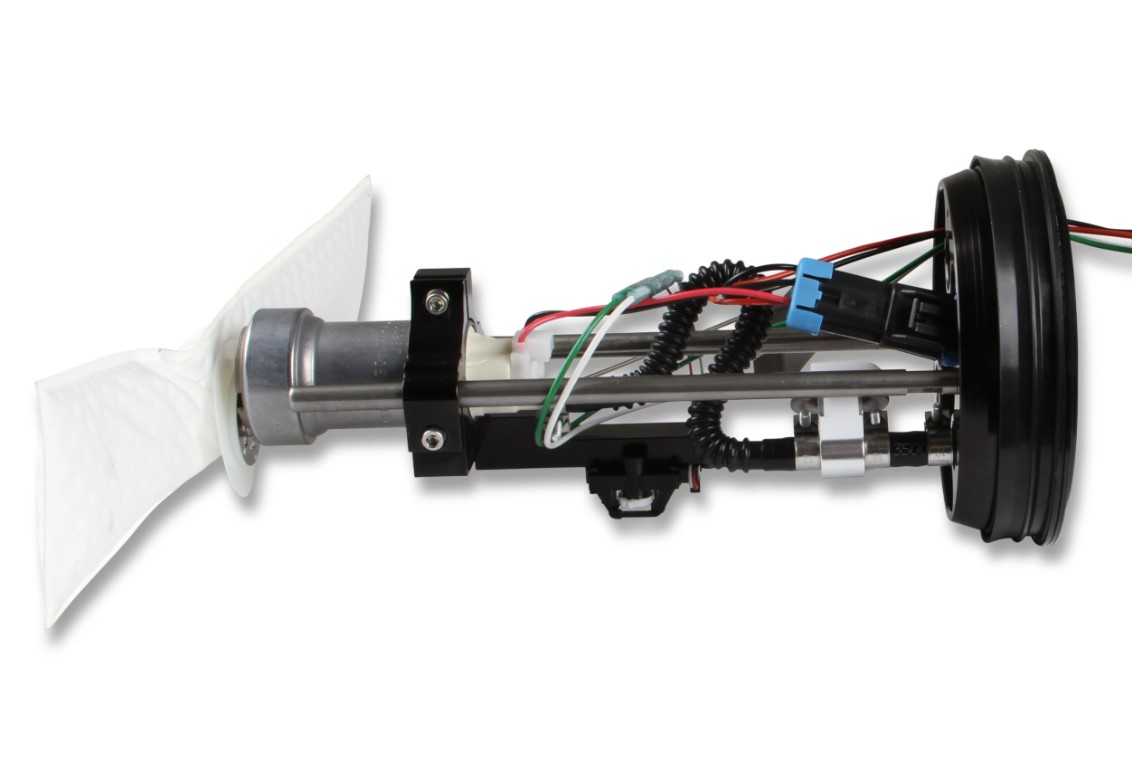

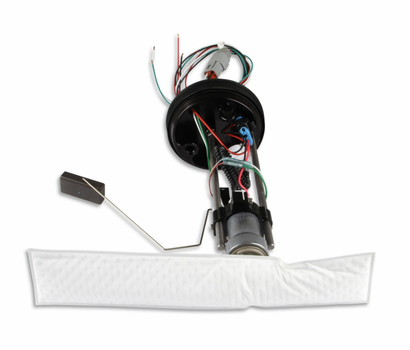

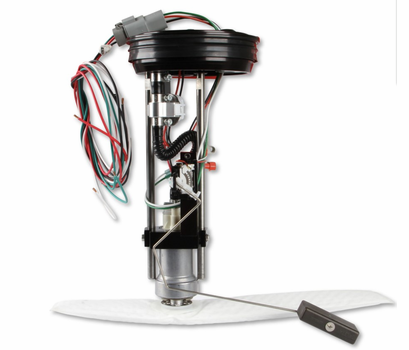

1998-2004 Dodge Truck 450 LPH Pump Module System - Returnless with 220-20 OHM Fuel Sending Unit

Item #: HLY12-324

Price: $499.99

Quantity:

PRODUCT DESCRIPTION

Fits: 1998-2004 Dodge Trucks

Update the fuel system in your Dodge truck with a high performance in-tank EFI fuel pump module. These fuel modules fit inside the factory tank & feature a billet aluminum flange, Hydramat®, fuel sending unit, and high performance pump. Choose from 255 or 450 LPH (liters per hour) fuel flow & return style or returnless design.

The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution!

Direct Fit in the following Vehicles:

1997-2004 Dodge Dakota (2WD & 4WD)

1998 Dodge B1500/B2500/B3500 (Full Size Vans)

1999-2003 Dodge Ram 1500 Van/Ram 2500 Van/Ram 3500 Van (Full Size Vans)

1998-2003 Dodge Ram 1500/Ram 2500/Ram 3500 (2WD & 4WD Full Size Pickups)

1999-2001 Dodge Ramcharger (2WD & 4WD - Mexico Only)

1998-2003 Dodge Durango (2WD & 4WD)

Features:

• High Performance In-Tank EFI Fuel Pump Modules for 1991-2004 Dodge Trucks

• Billet Aluminum Flange, Clamp & Fuel Level Sender

• Black Anodized Finish

• Choose from 255 or 450 LPH (liters per hour) Pump

• Adjustable for Tank Depth

• Choose from Return Style or Returnless Fuel Module

• Provisions for EVAP (Evaporative Emission Control System) – See the Installation Notes

• Inlets & Outlet Ports: -8 AN O-Ring Boss

• New Fuel Level Sender Included

• Optional Fill Vent Built Into Billet Aluminum Top – See the Installation Notes

• Includes Hydramat® - 3” x 15”

• Fits in Stock Factory Fuel Tanks

• Ideal for Use In Gen III Hemi Engine Swaps

SPECS

Amp Draw 22

Application 1998-2004 Dodge Trucks

Brand Holley

Emission Code 5

Forced Induction HP@60PSI 750

Free Flow GPH 139

Free Flow LPH 450

Fuel Sending Unit Ohms 220-20 Ohms

Fuel System EFI

Fuel Type E85 Gasoline

GPH@60PSI 100

Material Billet Aluminum and Steel



Naturally Aspirated HP@60PSI 1000

Outlet Size 8 AN

Product Type Fuel Pump Module

Pump Body Color Silver

Returnless No
