PRODUCT DESCRIPTION
Fits: 340 & 360

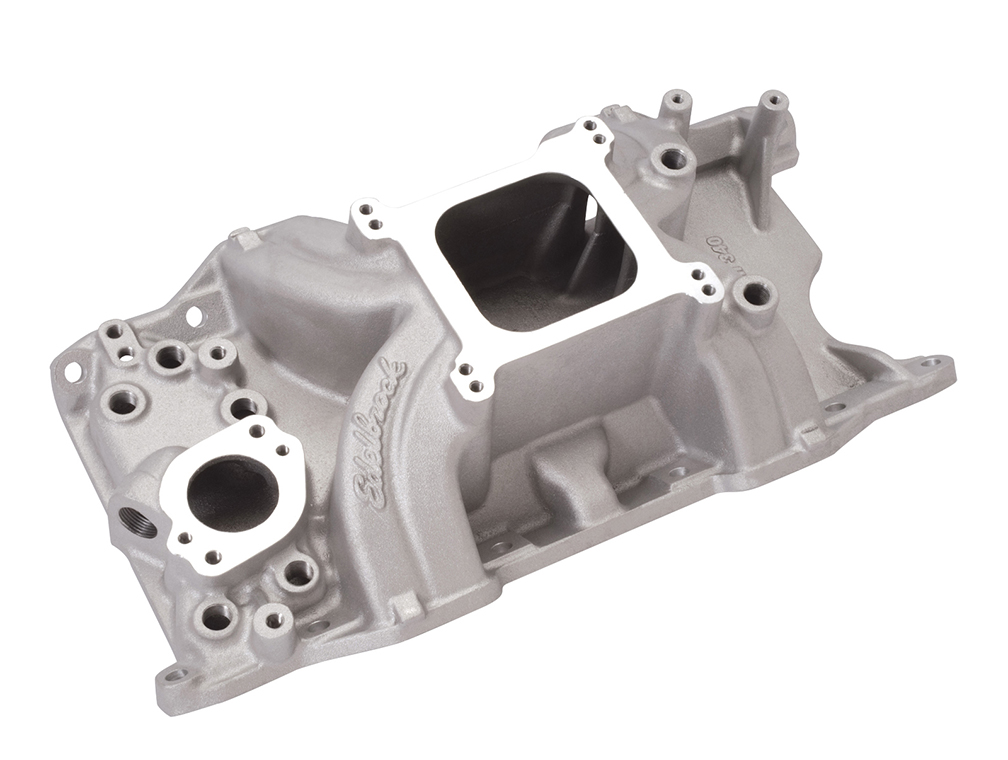

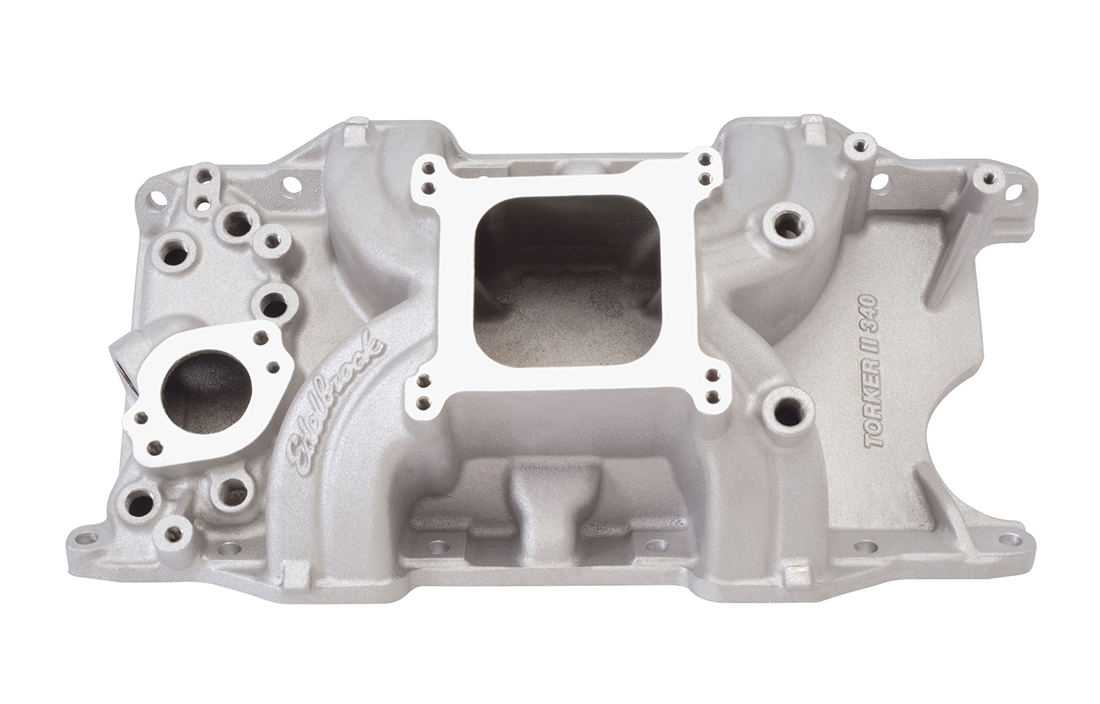

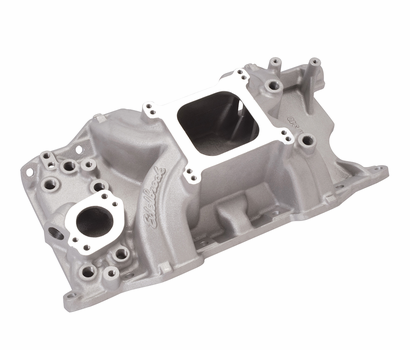

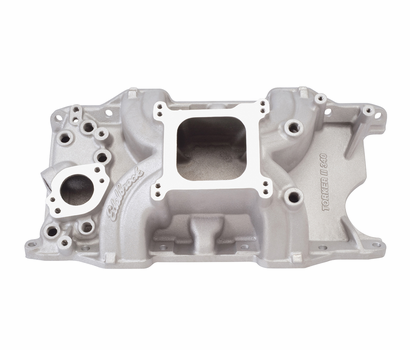

Edelbrock part #5076 Torker II intake manifold is designed for high Performance's street 340-360 c.i.d. Chrysler V8's. Manifold not equipped with EGR.
Can be used on 318 c.i.d. if 340-360 c.i.d. cylinder heads are used. Will not fit 1992 and later Magnum engines.
Not for heavy vehicles (trucks, vans etc.); use Performer #2176 intake manifold.
RPM Operating Range 2500-6500 RPM
Gasket Or Seal Included No
Vehicle Model Chrysler
Color Satin
Recommended intake gasket: Edelbrock # 7276, Fel-Pro #1213, Chrysler #4397642 (or equivalent)
Manifold height: A-5.25", B-6.19"
Carb pad height: 5.72"
Carb recommendations: Edelbrock AVS2 or Performer Series 600-800cfm. Use # 1481 or # 1843 throttle/transmission lever kit.
Port exit dimensions: 1.00" x 2.17"
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
