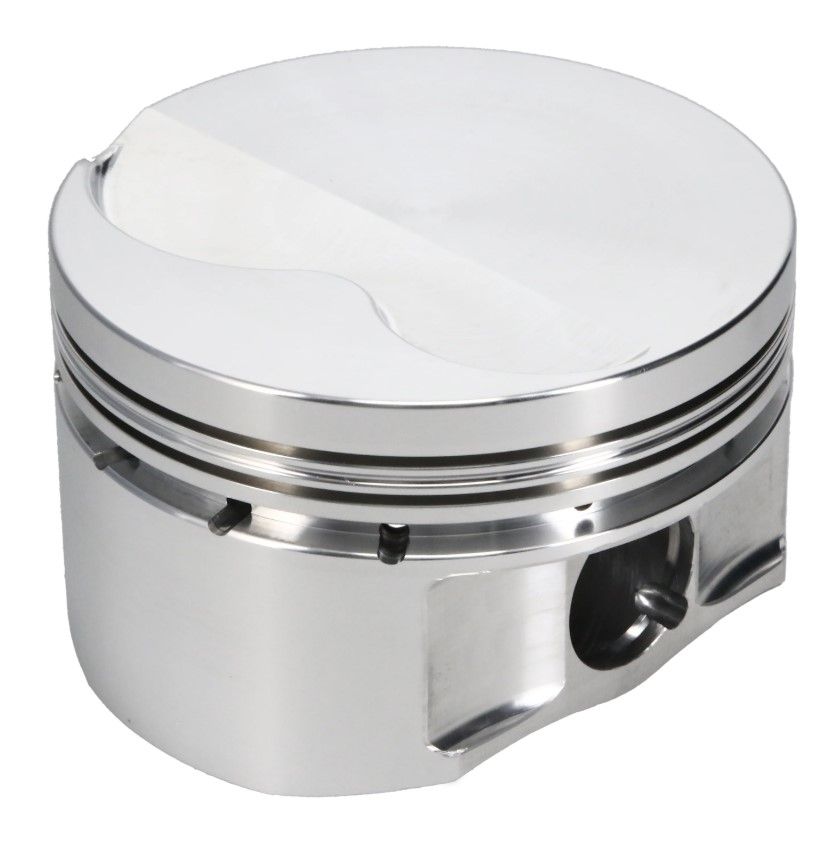

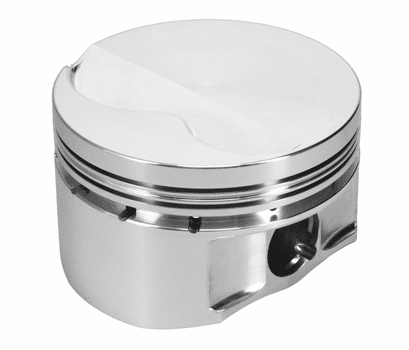

Diamond Pistons 360 Piston Kit 4.020 in. Bore – -5.6 CC Volume – 1.457 in. Comp Height

Fits: 360 – 4.020 Bore

600HP Rated - 4032 Material - Includes Pins and Rings

Bore (in.): 4.020 in.

Stroke: 4.000 in. Rod Length: 6.123 in.

Piston Style: Flat top, with two valve reliefs Piston Material: Forged aluminum

Compression Height (in.): 1.457 in. Piston Head Volume (cc): +5.60cc

Wrist Pin Style: Floating Wrist Pin Retainers Included: Yes

Pin Diameter (in.): 0.984 in. Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
