PRODUCT DESCRIPTION
Fits: 273-360
Combustion Chamber Volume (cc):
60
Intake Runner Volume (cc):
190cc
Exhaust Runner Volume (cc):
81cc
Cylinder Head Style:
Assembled
Cylinder Head Material:
Cast aluminum
Camshaft Style:
Hydraulic roller
Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
2.020 in.
CNC-Machined Combustion Chamber:
Yes
CNC-Machined Intake Runner:
Yes
CNC-Machined Exhaust Runner:
Yes
Combustion Chamber Style:
Heart
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Spark Plug Style:
Straight
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in.):
1.570 in.
Valve Springs Included:
Yes
Maximum Valve Lift (in.):
0.680 in.
Outside Diameter of Outer Spring (in.):
1.550 in.
Damper Spring Included:
Yes
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Titanium
Locks Included:
Yes
Lock Style:
10 degree
Valve Stem Seals Included:
Yes
Valve Stem Seal Style:
Positive stop
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Cover Mounting Style:
Perimeter bolt
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
18
Exhaust Valve Angle:
18
Valve Guides Included:
Yes
Valve Guide Material:
Bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile iron
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through head
Machined for O-Ring:
No
Heat Crossover:
No
Remanufactured:
No
Quantity:
Sold individually.
Notes:
Magnum engines must use Harland Sharp S72025K (1.5 ratio) or S72026K (1.6 ratio) shaft mount roller rocker arms for proper oiling.

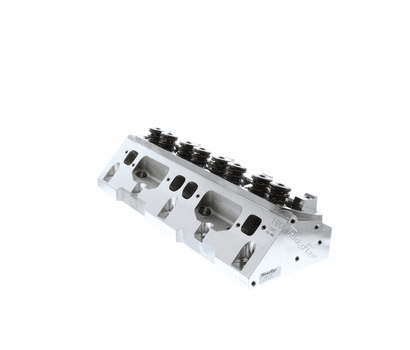

Trick Flow® PowerPort® 190 Cylinder Heads for Small Block Mopar
Trick Flow® PowerPort® 190 cylinder heads for small block Mopar engines are made from A356-T61 aluminum because it's much lighter but every bit as strong as cast iron. The intake runners have been enhanced to increase airflow, and both intake and exhaust runners feature Trick Flow's® special CNC Street Ported treatment that combines premium-quality CNC machining with a standard resolution finish that's perfect for making more power.
That's not all! Newly designed rocker arm shaft mounting bosses are stronger than the OE design, and larger diameter pushrod holes have been incorporated to accommodate 3/8 in. pushrods for use with flat tappet and hydraulic roller camshafts. Bronze alloy valve guides, ductile iron valve seats, and multi-angle valve seats further increase performance and durability. Assembled cylinder heads include premium 11/32 in. stainless steel valves, Trick Flow by PAC Racing® valve springs, steel valve stem locks—and have chromoly and titanium retainer options.
The heads fit all non-emissions 318, 340, and 360 engines found in many Chrysler vehicles from 1967-2003. You read that right: these heads fit both LA and Magnum-series engines, giving builders a truly "best of both worlds" scenario. That means Magnum builders can use readily available LA engine parts such as intake manifolds and valve covers. PowerPort® 190 cylinder heads are available fully assembled or as bare castings; sold separately. Order the model recommended for your year/make and engine application.
