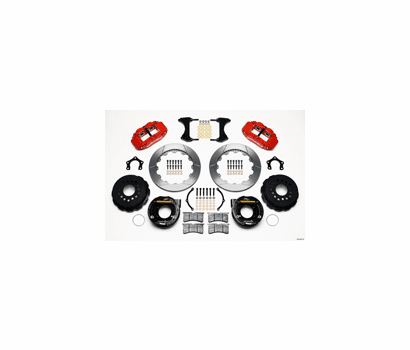

Narrow Superlite 4R Big Brake Rear Parking Brake Kit

Item #: WIL140-9222-R

Price: $1,822.99

Quantity:

PRODUCT DESCRIPTION

Rear End: 8-3/4" and 9-3/4" Mopar/Dana 60

Position: Rear

Front Rotor Included: No

Rear Rotor Included: Yes

Rear Rotor Style: Slotted surface

Rear Rotor Construction: Vented

Rear Rotor Diameter: 12.88 in./327.15mm

Rear Rotor Thickness (in): 1.100 in.

Front Caliper Included: No

Rear Caliper Included: Yes

Rear Caliper Piston Quantity: Four

Rear Caliper Material: Forged billet aluminum

Rear Caliper Finish: Black powdercoated

Parking Brake Provision: Yes

Parking Brake Style: Internal drum

Minimum Recommended Wheel Diameter (in): 17 in.

Offset (in): 2.360 in.

Front Spindles Included: No

Master Cylinder Included: No

Brake Booster Included: No

Brake Hoses Included: No

Quantity: Sold as a kit.

Notes: Requires the use of non-adjustable "green" axle bearings with snap rings.

Whether you're driving a lifted 4x4 with large tires and wheels, a high-power musclecar, or a quick and nimble street racer, exceptional brakes make the difference between stopping in time and a trip to the hospital. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These kits feature FNSL4R 4-piston oversized stainless steel calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. If you own a manual transmission or have seen a truck pop out of gear and roll into a motorhome, then you know the importance of the high-quality, drum-style parking brake assemblies included with these kits. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast.
