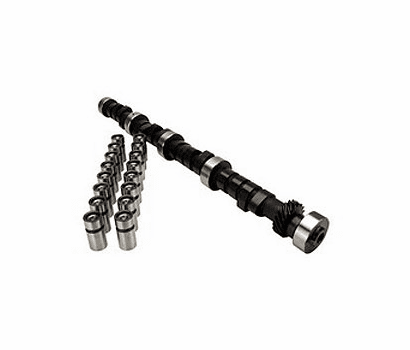

Comp Cams High Extreme Mechanical Cam Kit

Item #: COMCL20-231-4

Price: $475.99

Quantity:

PRODUCT DESCRIPTION

Advertised Duration 282/290, Lift .520/.540

Cam Style: Mechanical flat tappet

Basic Operating RPM Range: 2,500-6,500

Intake Duration at 050 inch Lift: 244

Exhaust Duration at 050 inch Lift: 252

Duration at 050 inch Lift: 244 int./252 exh.

Advertised Intake Duration: 282

Advertised Exhaust Duration: 290

Advertised Duration: 282 int./290 exh.

Intake Valve Lift with Factory Rocker Arm Ratio: 0.520 in.

Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.540 in.

Valve Lift with Factory Rocker Arm Ratio: 0.520 int./0.540 exh.

Lobe Separation (degrees): 110

Intake Valve Lash: 0.016 in.

Exhaust Valve Lash: 0.018 in.

Grind Number: XS282S

Computer-Controlled Compatible: No

Lifters Included: Yes

Lifter Style: Mechanical flat tappet

Valve Springs Included: No

Retainers Included: No

Locks Included: No

Valve Stem Seals Included: No

Timing Chain and Gears Included: No

Assembly Lubricant Included: Yes

Pushrods Included: No

Rocker Arms Included: No

Gaskets Included: No

Valve Springs Required: Yes

Quantity: Sold as a kit.

COMP Cams Xtreme Energy cam and lifter kits are built to take advantage of the latest cam technology and provide maximum performance. Whether your use is off-roading, towing, or street performance, there are Xtreme Energy cam and lifter kits available for you. By using an aggressive lobe profile, they provide better throttle response and more top-end horsepower than equivalent kits from other manufacturers, while delivering increased engine vacuum.
