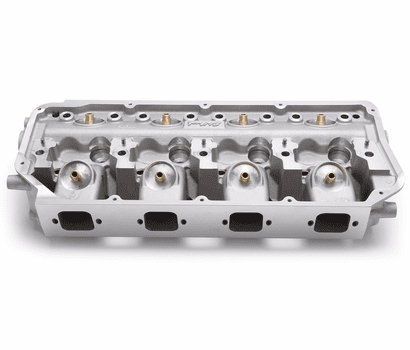

Edelbrock Victor Jr. CNC Chrysler Cylinder Head

Item #: EDE61179

Price: $1,626.99

View Spec Sheet
Quantity:

PRODUCT DESCRIPTION

Fits: 426-572 Hemi, Hydraulic Flat Tappet Cams

Combustion Chamber Volume (cc): 170

Intake Runner Volume (cc): 245cc

Exhaust Runner Volume (cc): 105cc

Cylinder Head Style: Assembled

Cylinder Head Material: Aluminum

Intake Valve Diameter (in): 2.320 in.

Cylinder Head Finish: Natural

CNC-Machined Combustion Chamber: Yes

CNC-Machined Intake Runner: No

CNC-Machined Exhaust Runner: No

Intake Port Location: Standard

Exhaust Port Shape: Square

Exhaust Port Location: Standard

Spark Plug Style: Straight

Intake Valves Included: Yes

Exhaust Valves Included: Yes

Exhaust Valve Diameter (in): 1.940 in.

Valve Springs Included: Yes

Maximum Valve Lift (in): 0.700 in.

Outside Diameter of Outer Spring (in): 1.540 in.

Damper Spring Included: Yes

Number of Springs Per Valve: Single

Retainers Included: Yes

Locks Included: Yes

Valve Stem Seals Included: Yes

Rocker Arm Studs Included: No

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: No

Accessory Bolt Holes Drilled: Yes

Valve Guides Included: Yes

Valve Guide Material: Manganese bronze

Valve Seats Machined: Yes

Steam Holes Drilled: No

Oiling Style: Through pushrod

Machined for O-Ring: No

Heat Crossover: No

Quantity: Sold individually.

Notes: For use with hydraulic flat tappet cams only.

Edelbrock Victor Jr. CNC Chrysler cylinder heads are designed for high output Chrysler 426-572 HEMI engines. They feature fully CNC ported combustion chambers and CNC blended seats for optimal air flow performance. These heads also feature a revised exhaust valve angle to accommodate larger intake valves and feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
